- 30mm Tube with Best in Class Multi Emerald Coated Lenses to Achieve Maximum Light Transmission for Best Clarity
- Built on TRUE STRENGTH® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
- Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color Mode and 36 Color Multi-Color Mode to Accommodate All Weather/Light Conditions
- 1-Click High-tech Illumination Memory Feature Gets You Right Back to the Color/Brightness Setting Last Used
- Premium Zero Locking and Zero Resetting Target Turrets with Most Consistent and Precise 1/4 MOA per Click Windage/Elevation Adjustment
- Side Wheel Adjustable Turret (SWAT) for Parallax Adjustment – from 10 Yards to Infinity; Side Wheel Ready for Optional Big Wheel to Achieve Finer Parallax Adjustment

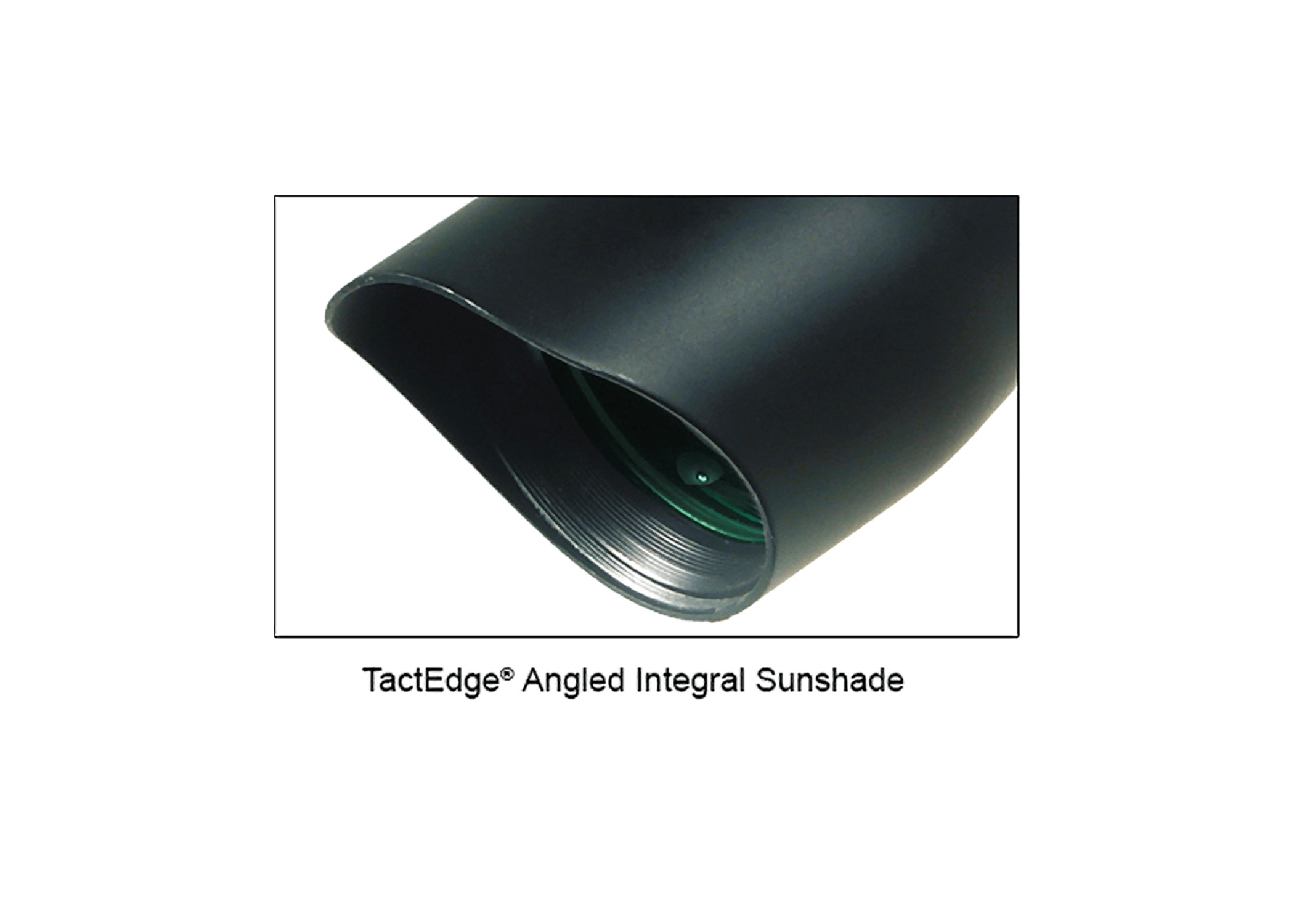

- TactEdge® Angled Integral Sunshade, complete with Flip-open Lens Caps and High Quality Max Strength Quick Detach Picatinny/Weaver Rings
| Ballistic Drop Compensation | No |
|---|---|
| Battery Loading | Rear Eyepiece |
| Battery Type | CR2032 3V |
| Brightness Mode(s) | Manual |
| Click Value | 1/4 MOA |
| Diopter Adjustment | -2D to +2D |
| Diopter Type | Friction Secured |
| Dustproof Rating | IP6X |
| Elevation Travel | Up 40 MOA / Down 40 MOA |
| Elevation Travel (Total) | 80 MOA |
| Exit Pupil | 11 mm – 2.8 mm |
| Eye Relief | 3.4 in – 3.0 in (86 mm – 76 mm) |
| Field of View (Angular FOV) | Low Power: 5° / High Power: 1.5° |
| Field of View (Linear FOV @ 100 m) | Low Power: 8.7 m / High Power: 2.6 m |
| Field of View (Linear FOV @ 100 yds) | Low Power: 26.2′ / High Power: 7.85′ |
| Focal Plane | SFP (Second Focal Plane) |
| Illuminated | Yes |
| Illumination Toggle Type | EZ-TAP |
| Magnification Max. | 16X |
| Magnification Min. | 4X |
| Materials | Aluminum |
| Parallax | 10 yds (9.14 m) – Infinity |
| Parallax Control | Left Side Adjustable Turret |
| Patent | EU PAT. EP2520894 / US PAT. 8397421 / US PAT. 8437079 |
| Quick-detachable | No |
| Range Estimation | Yes |
| Reticle | Mil-Dot |
| Reticle Color | IE 36-Color |
| Reticle Type | Wire |
| Rings or Mount Included | 30mm Picatinny/Weaver Rings |
| Surface Finish | Anodized |
| Weight | 21.8 oz (618 g) |
| Windage Travel | Right 40 MOA / Left 40 MOA |
| Windage Travel (Total) | 80 MOA |
| Zero Stop | No |
| Eyepiece Diameter | 1.6 in (40 mm) |
|---|---|
| Front Mounting Space | 1.6 in (40 mm) |
| Length | 11.2 in (284 mm) |
| Objective Diameter | 2.1 in (54 mm) |
| Objective Lens Diameter | 44 mm |
| Objective Tube Length | 3.1 in (78 mm) |
| Ocular Tube Length | 3.1 in (79 mm) |
| Rear Mounting Space | 1.5 in (39 mm) |
| Sunshade Offset Length | 0.6 in (15 mm) |
| Total Mounting Space | 4.4 in (112 mm) |
| Tube Diameter | 30 mm |
| # | IMAGE | DESCRIPTION | QUANTITY |
|---|---|---|---|
| 1 |  |
CR2032 3V High Energy Lithium Battery | 1 |
| 2 |  |
Mil-Dot Chart | 1 |
| 3 |  |
Scope Owners Manual | 1 |
| 4 |  |
MaxStrength Picatinny/Weaver Rings, 1 Pair | 1 |
| 5 |  |
Hex Screw | 1 |
| 6 |  |
Allen Wrench 4mm | 1 |
| 7 |  |
Allen Wrench 3mm | 1 |
| 8 |  |
Cleaning Cloth | 1 |
| 9 |  |
Flip-open Lens Caps | x2 |
