- Ultra Compact 243mm / 9.6in Length
- Second Focal Plane – Consistent Reticle with Varying Magnification
- Ideal for Use on Light Firearms, without Adding Extra Bulk
- 0.18 MIL Illuminated Center Dot for Field Target Precise Aiming
- Christmas Tree for Fast Follow-up Corrections
- 30mm Monotube Enlarges the Elevation Adjustment Range to 30 MIL with 1/10 MIL Click Value
- Fully Multicoated, Delivering Bright & Crisp Images
- Side Focus from 10 Yards for Close-Range Shooting

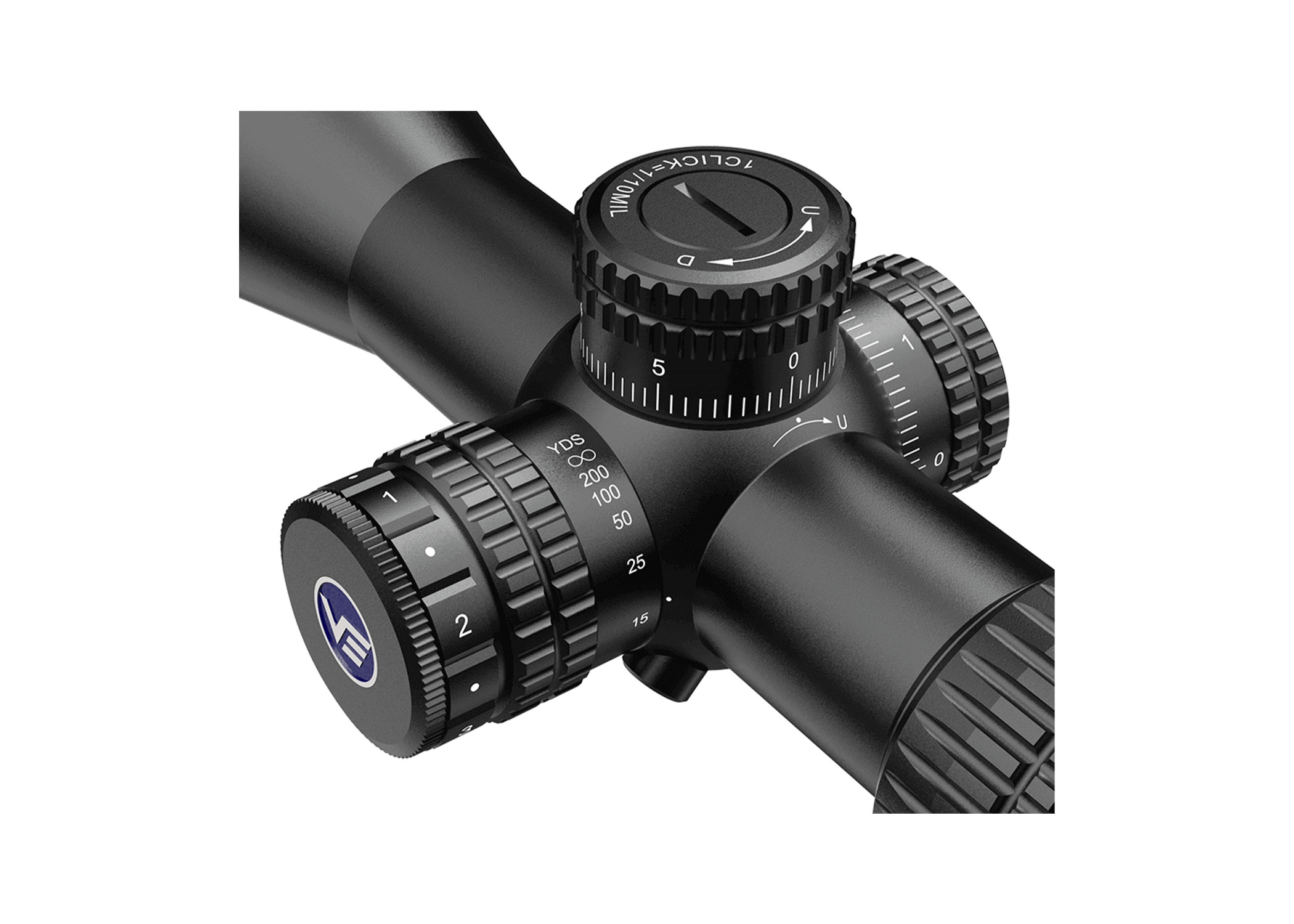

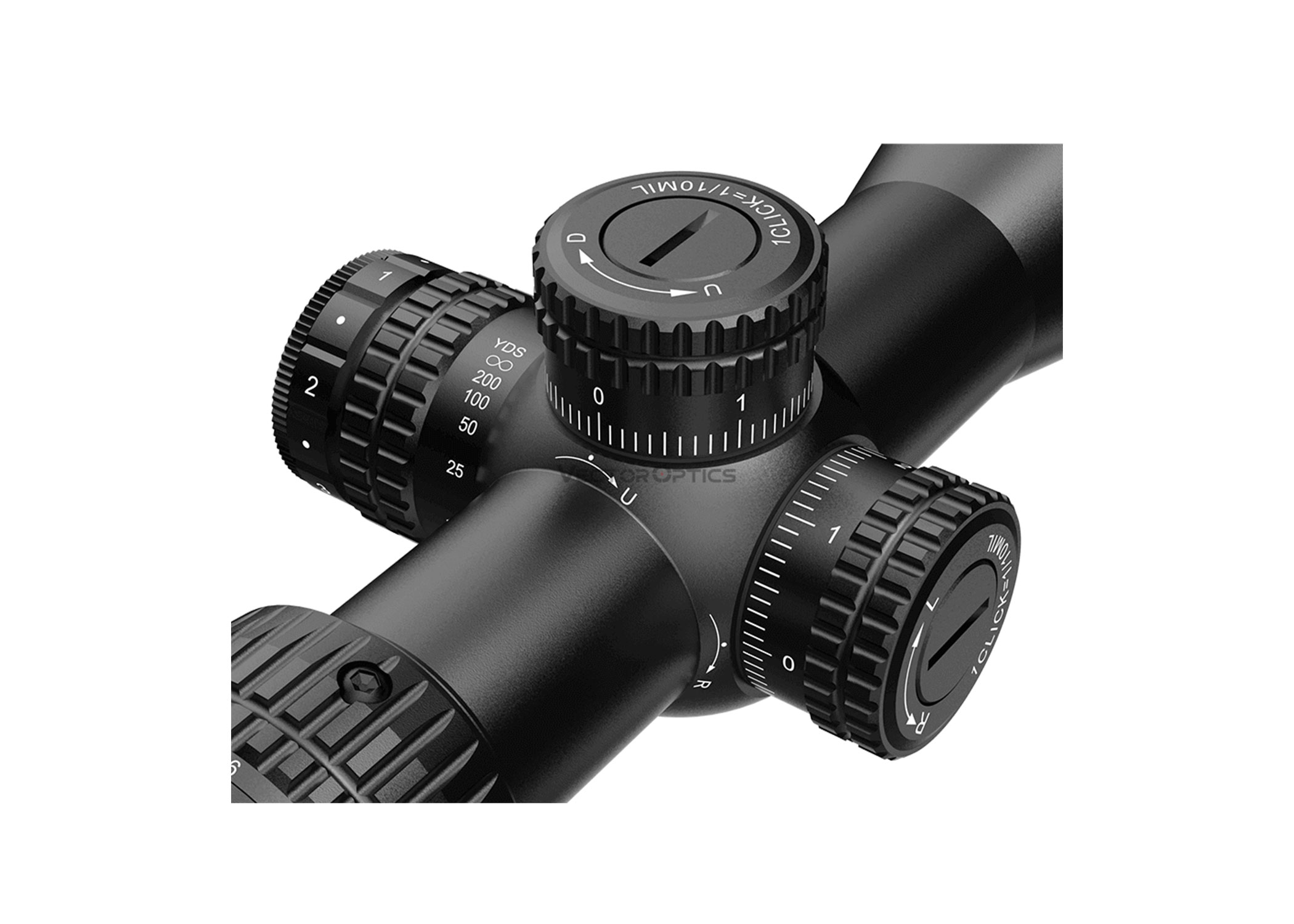

- Turret Lock Prevents Unwanted Adjustment
Optical Specifications:
| Magnification | 3-12x |
| Objective Lens Diameter | 44 mm |
| Focal Plane | Second Focal Plane |
| Eye Relief | 90-85 mm |
| Lens Coating | Fully Multi-Coated |
| Linear Field of View @ 100 yd | 35.1-8.7 ft @ 100 yards |
| Linear Field of View @ 100 m | 11.7-2.9 m @ 100 meters |
| Angular Field of View | 6.7-1.7° |

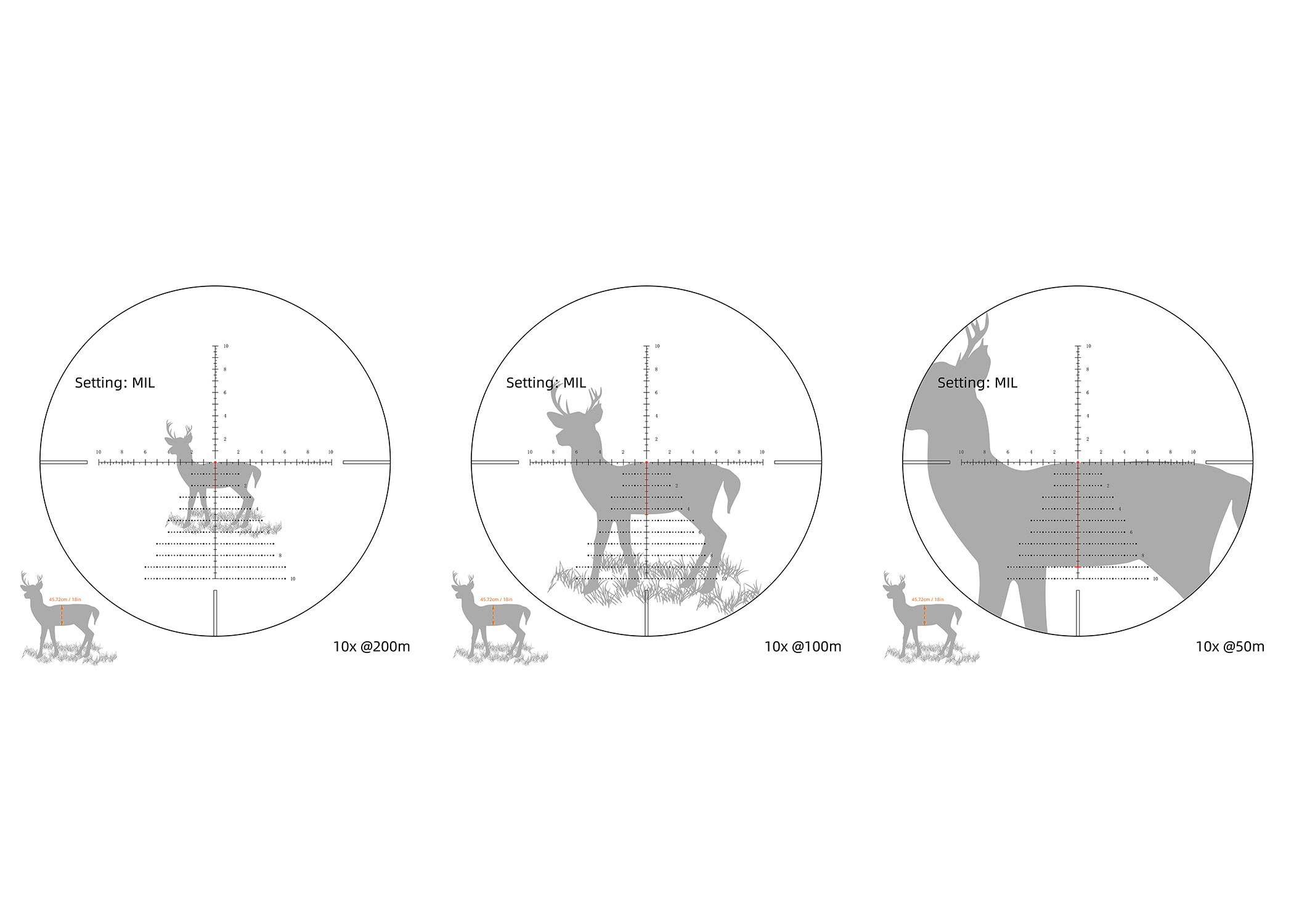

| Reticle | MPR-V10 etched glass reticle with center dot illuminated |
Mechanical Specifications:
| Tube Diameter | 30 mm |
| Side Focus | 10 yards to Infinity |
| Click Value | 1/10 MIL |
| Turret Function | Zero Reset, Turret Lock |
| Elevation Adjustment Range | 30 MIL |
| Windage Adjustment Range | 17.5 MIL |
| Diopter Compensation | -2 to +2 |
| Illumination Setting | 6 Gears |
| Battery Type | CR2032 |
| Waterproof | IPX4 |
| Fogproof | Nitrogen Filled |
| Shockproof | 750 G |
| Housing Material | 6061-T6 Aluminum Alloy |
| Finish | Matte Black |

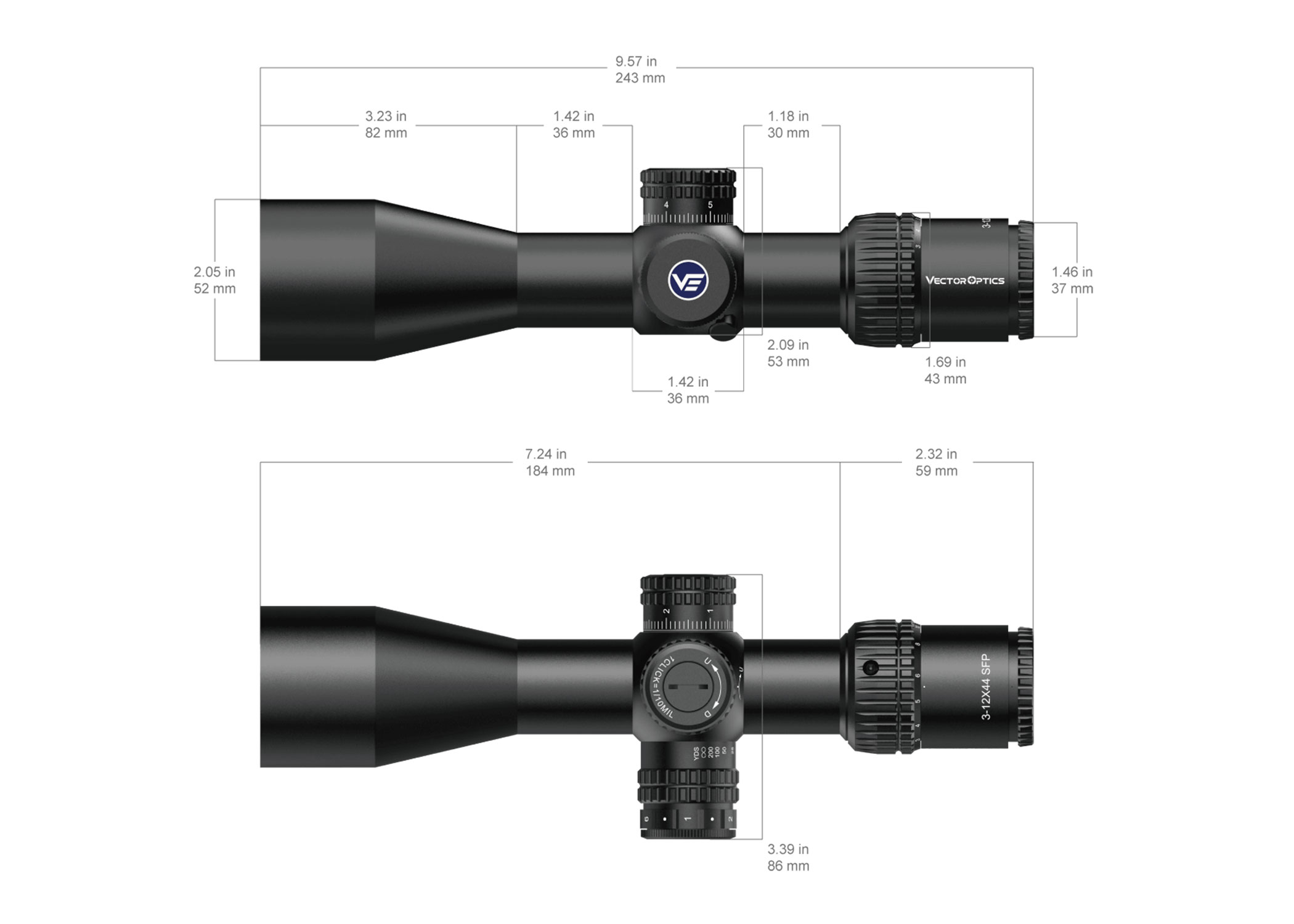

| Length | 243 mm / 9.6 in |
| Weight | 530g / 18.7 oz |

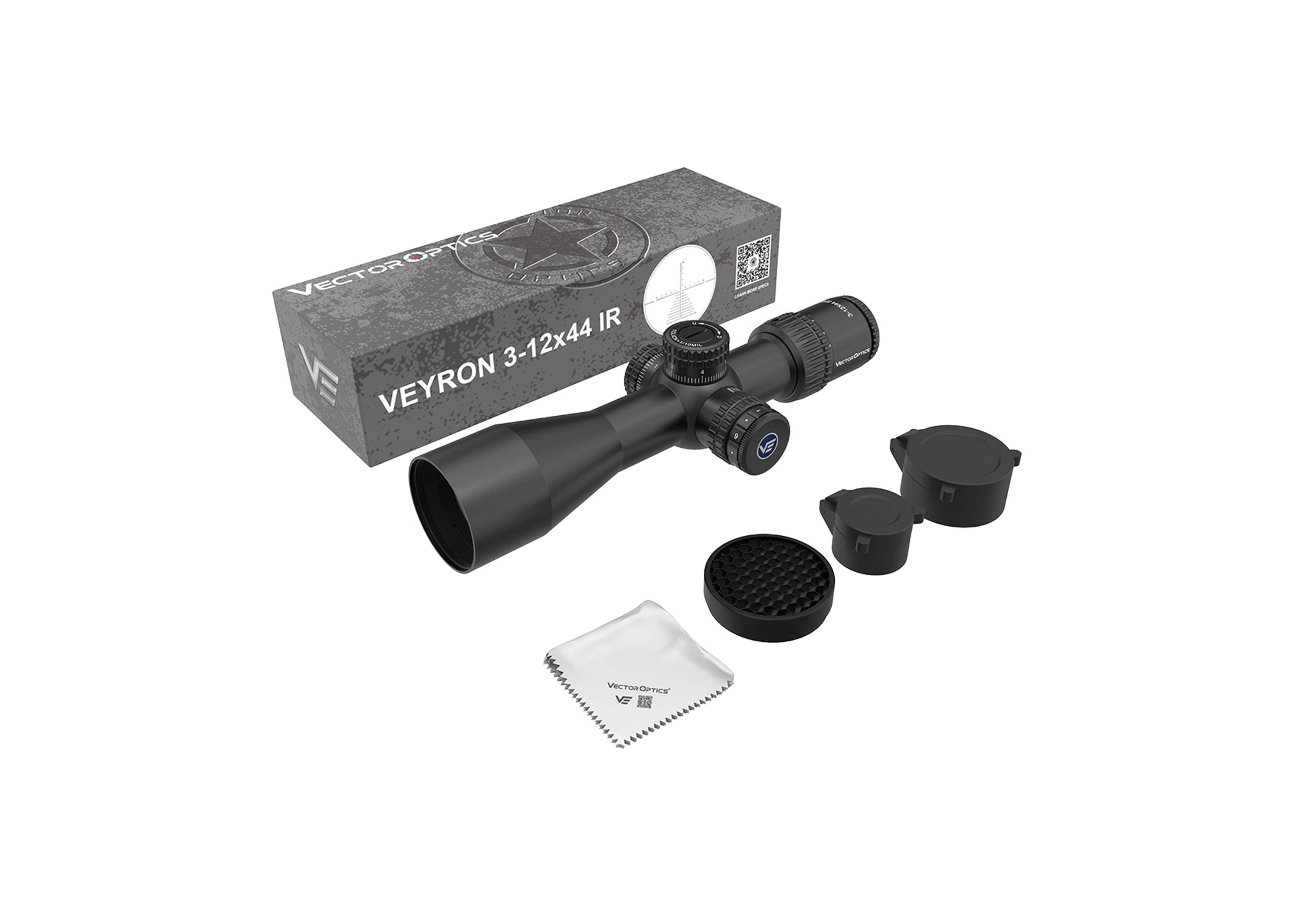

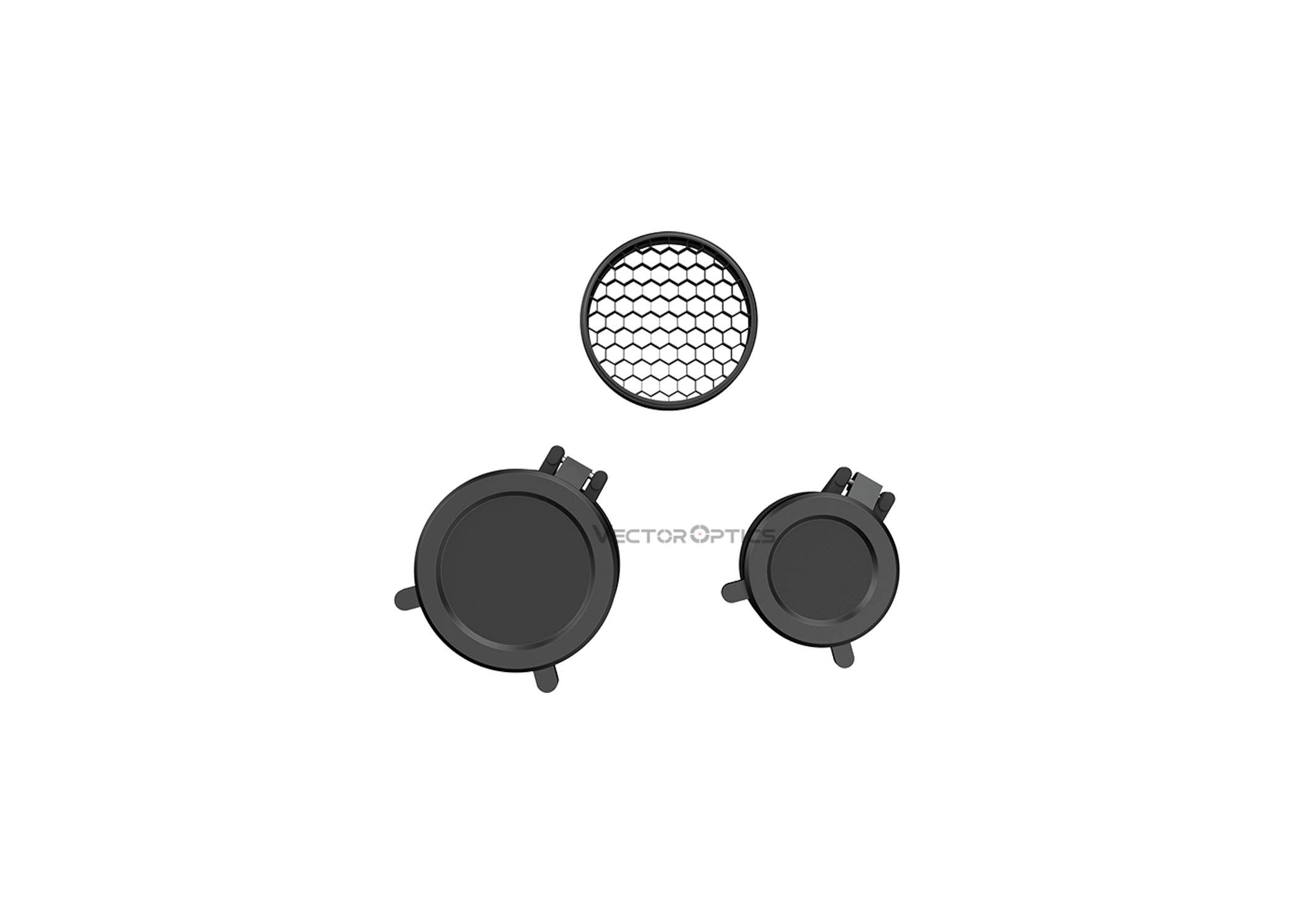

| Items in the Package | One Pair of 30mm Weaver Scope Rings, Flip-up Caps, Honeycomb Sunshade & Cleaning Cloth etc. |
