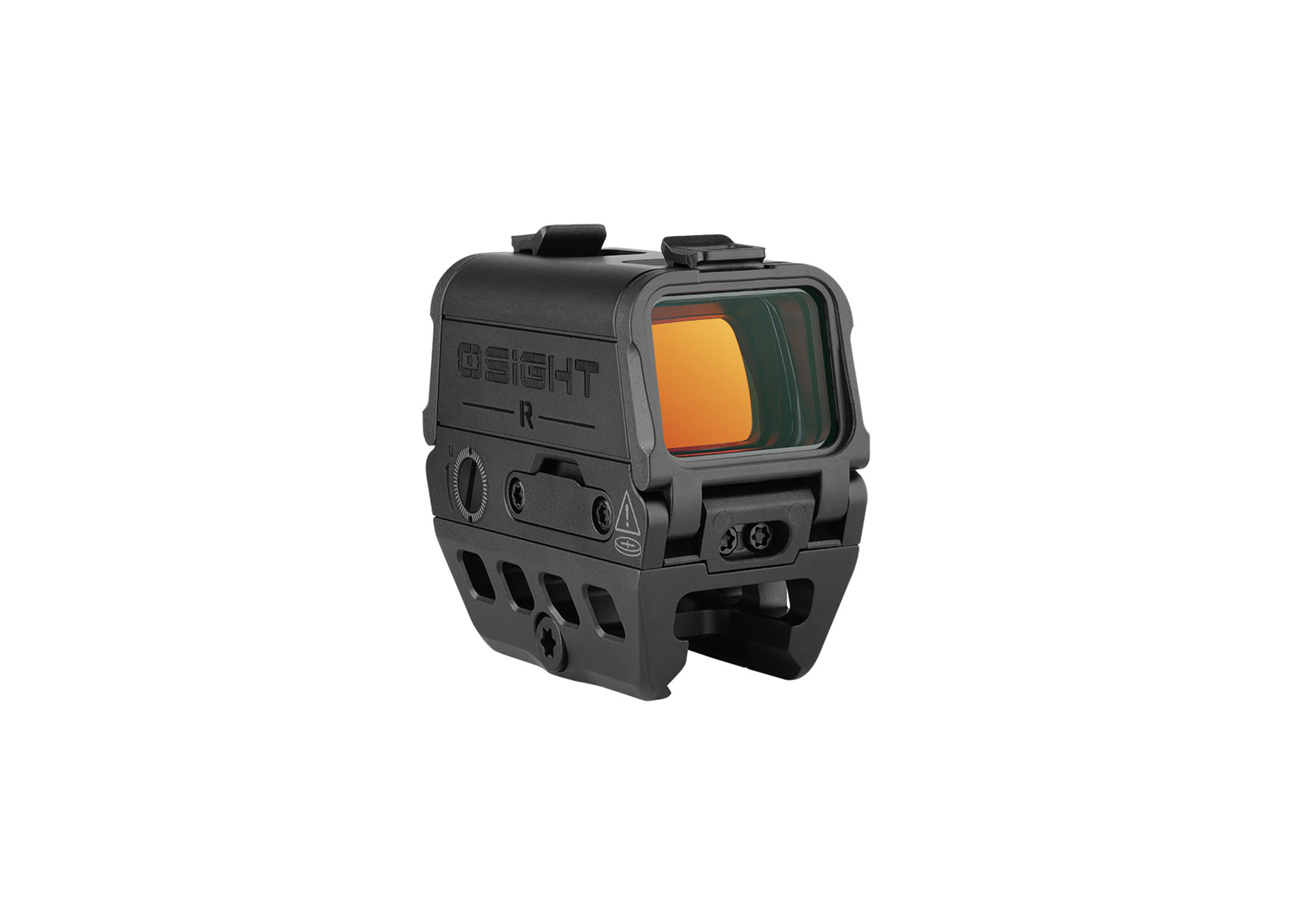

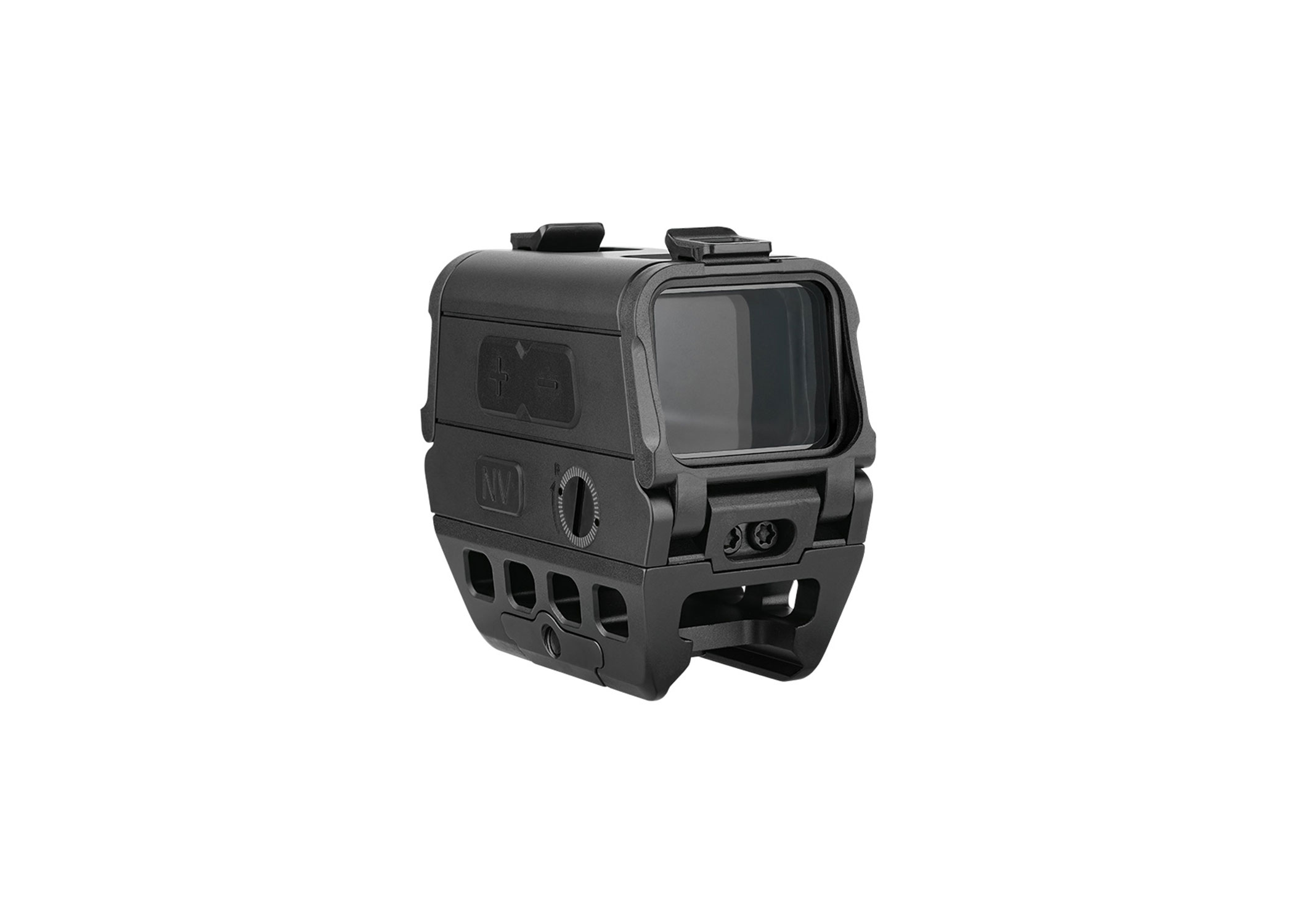

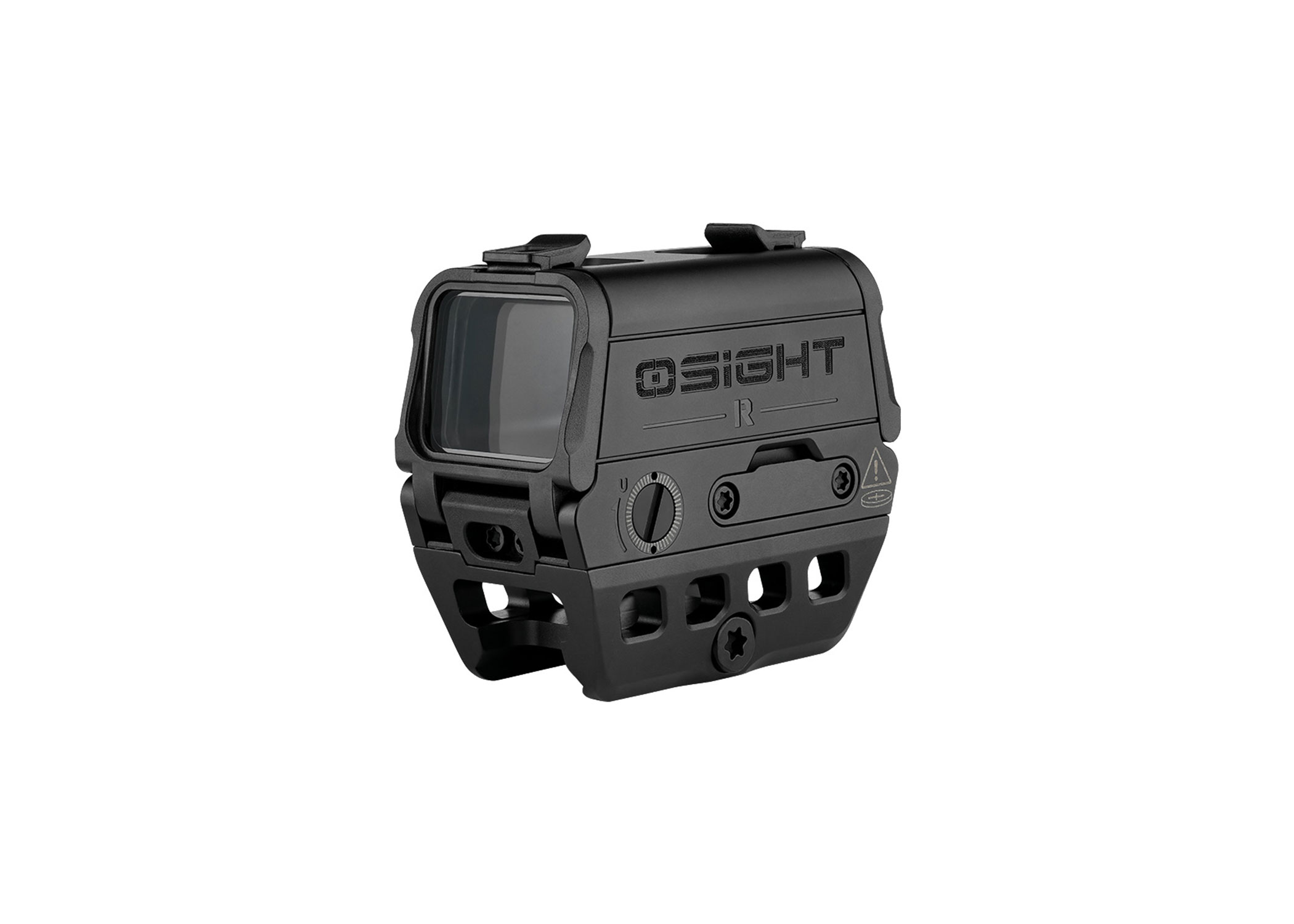

Osight R Micro T1/T2 Footprint Enclosed Red Dot Sight with Multi-Reticle System

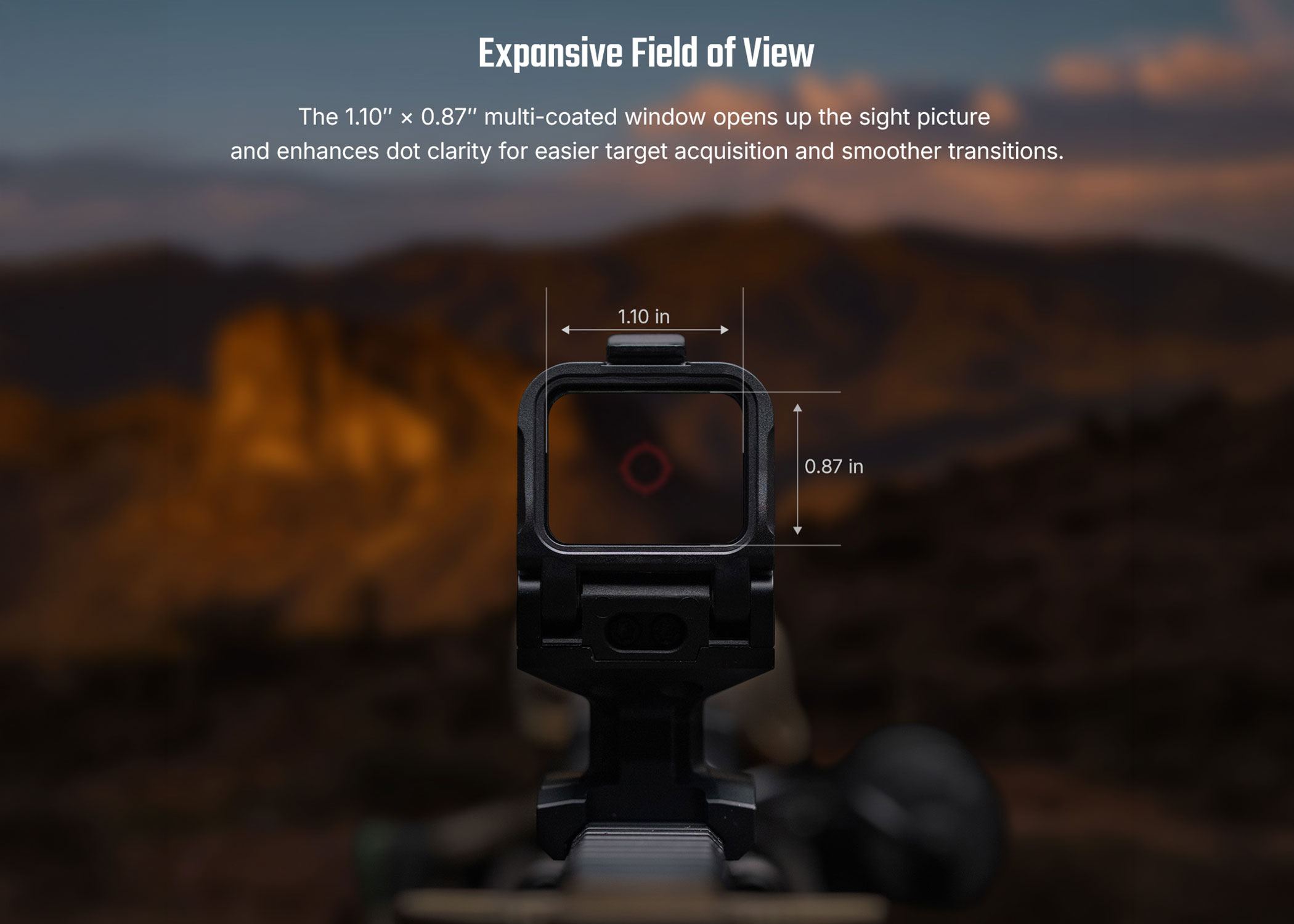

Large Field of View with Multi-Coated Lens: Featuring a 1.10″ × 0.87″ window and multilayer lens coatings, the Osight R delivers a brighter, wider sight picture for faster target acquisition and transitions.

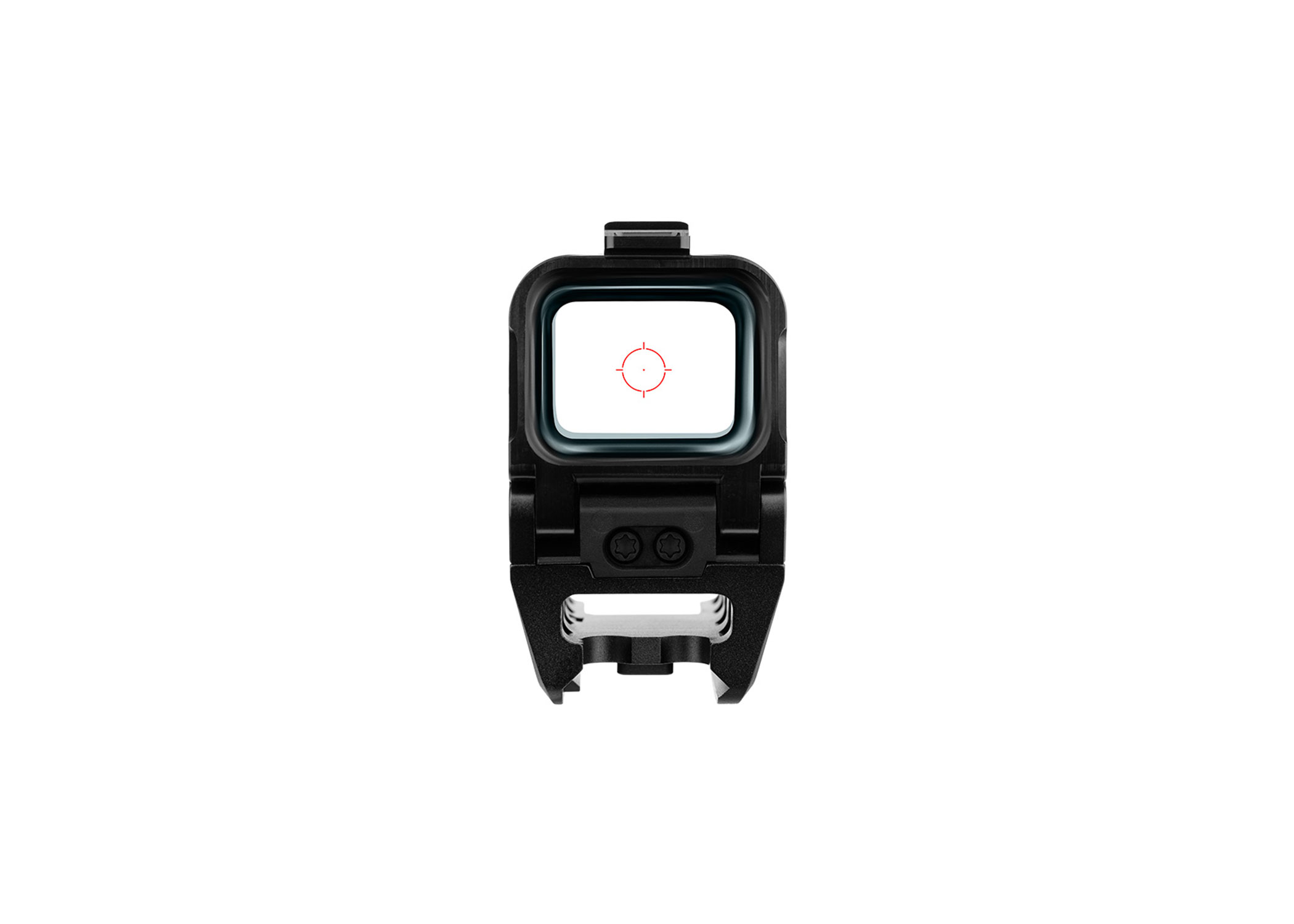

Multi-Reticle System: Switch between a precise 2 MOA dot, a bold 65 MOA circle, or both to balance speed and precision across different shooting scenarios.

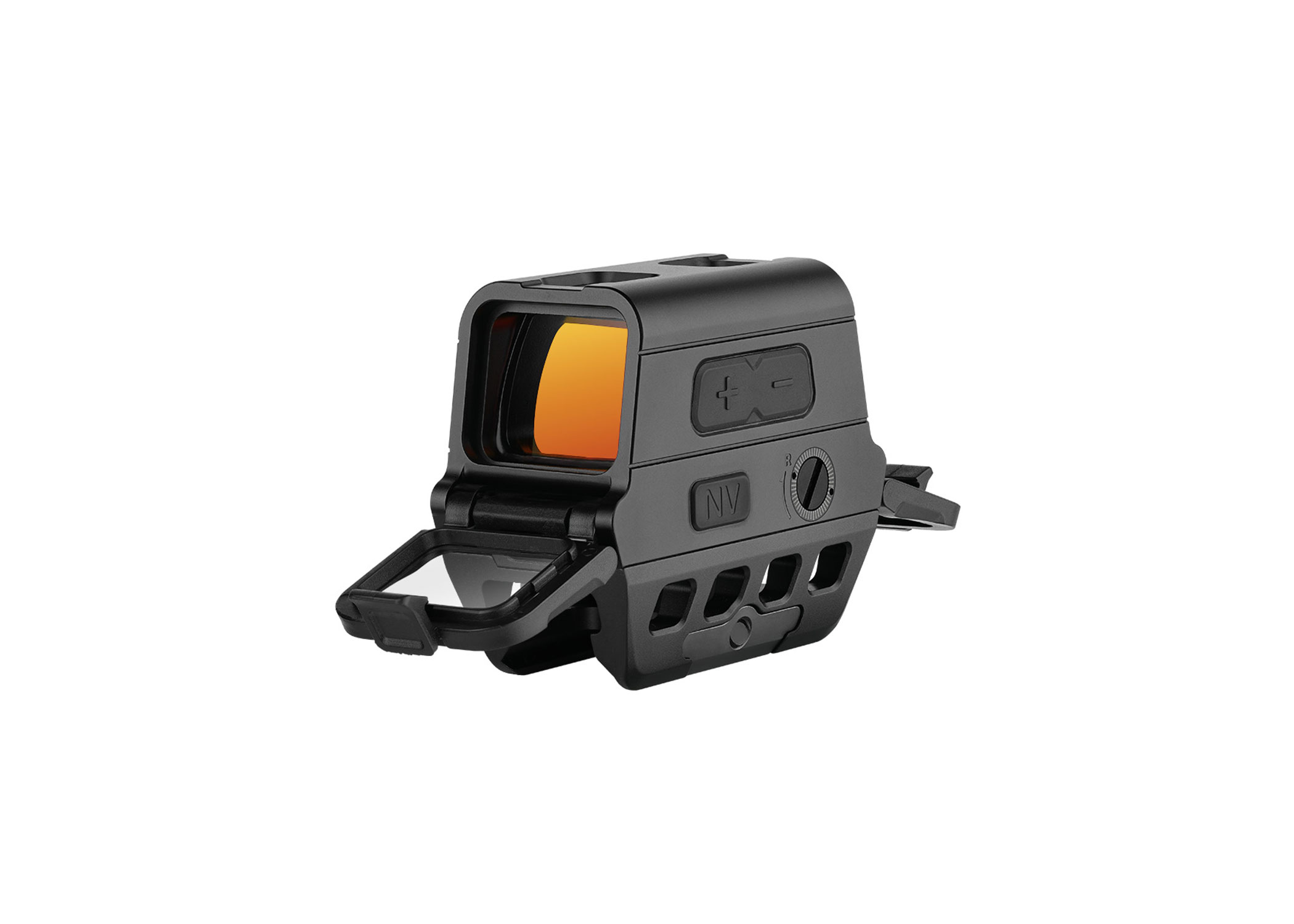

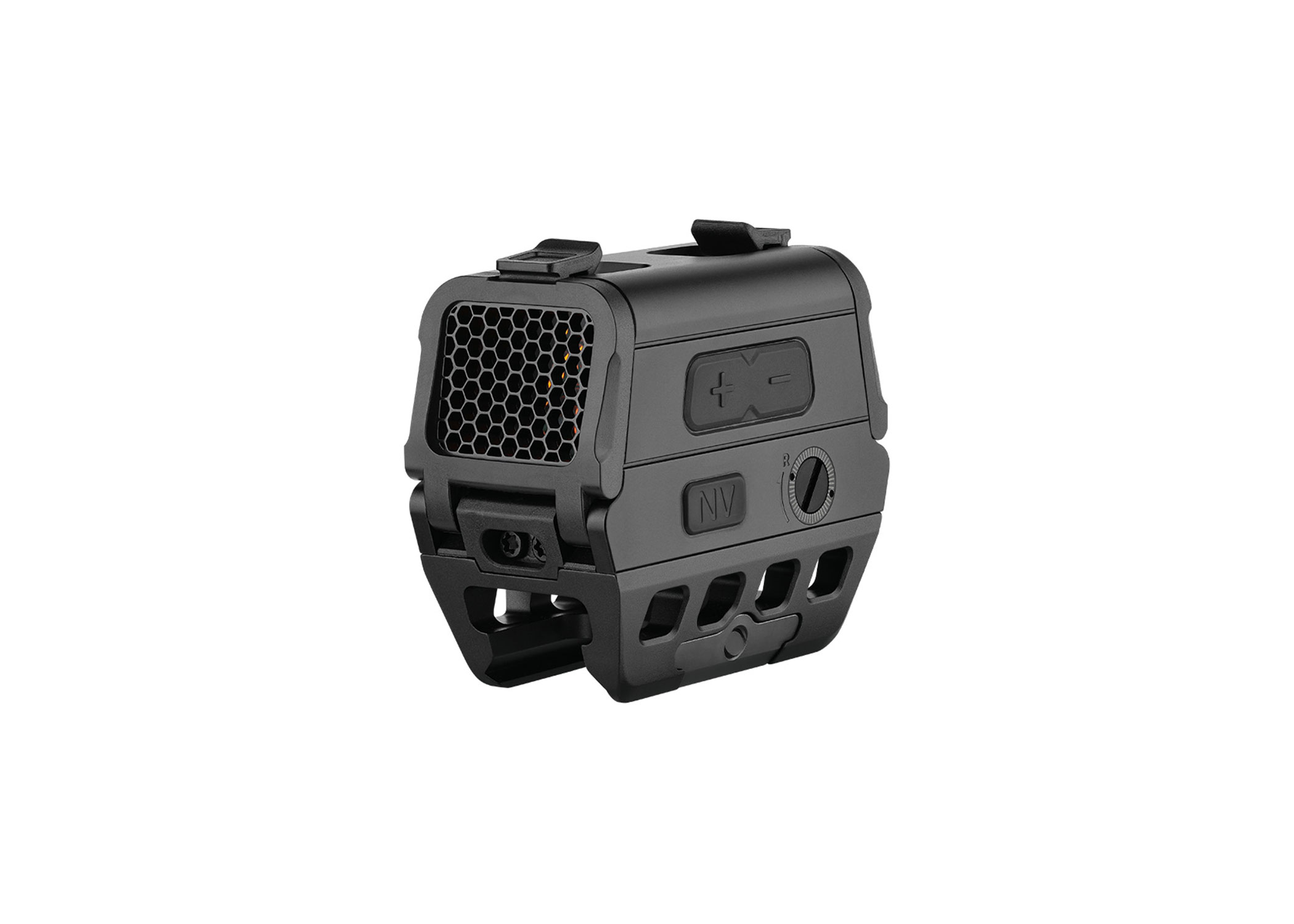

Protective Lens Covers with ARD Compatibility: Removable front and rear protective lens covers shield the primary glass from debris, scratches, and impact. The front cover can be replaced with the included anti-reflective device (ARD) to reduce glare and reflections.

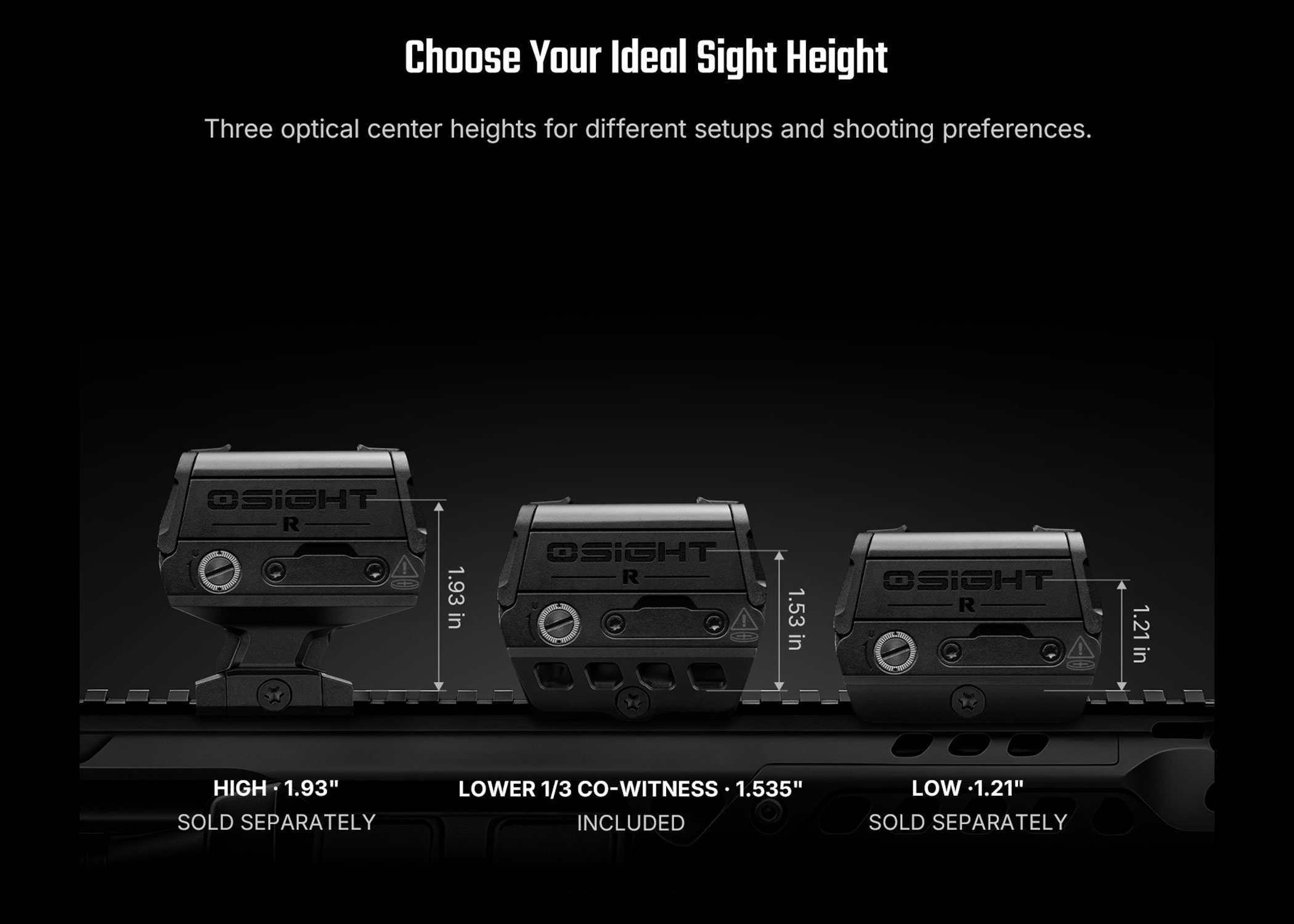

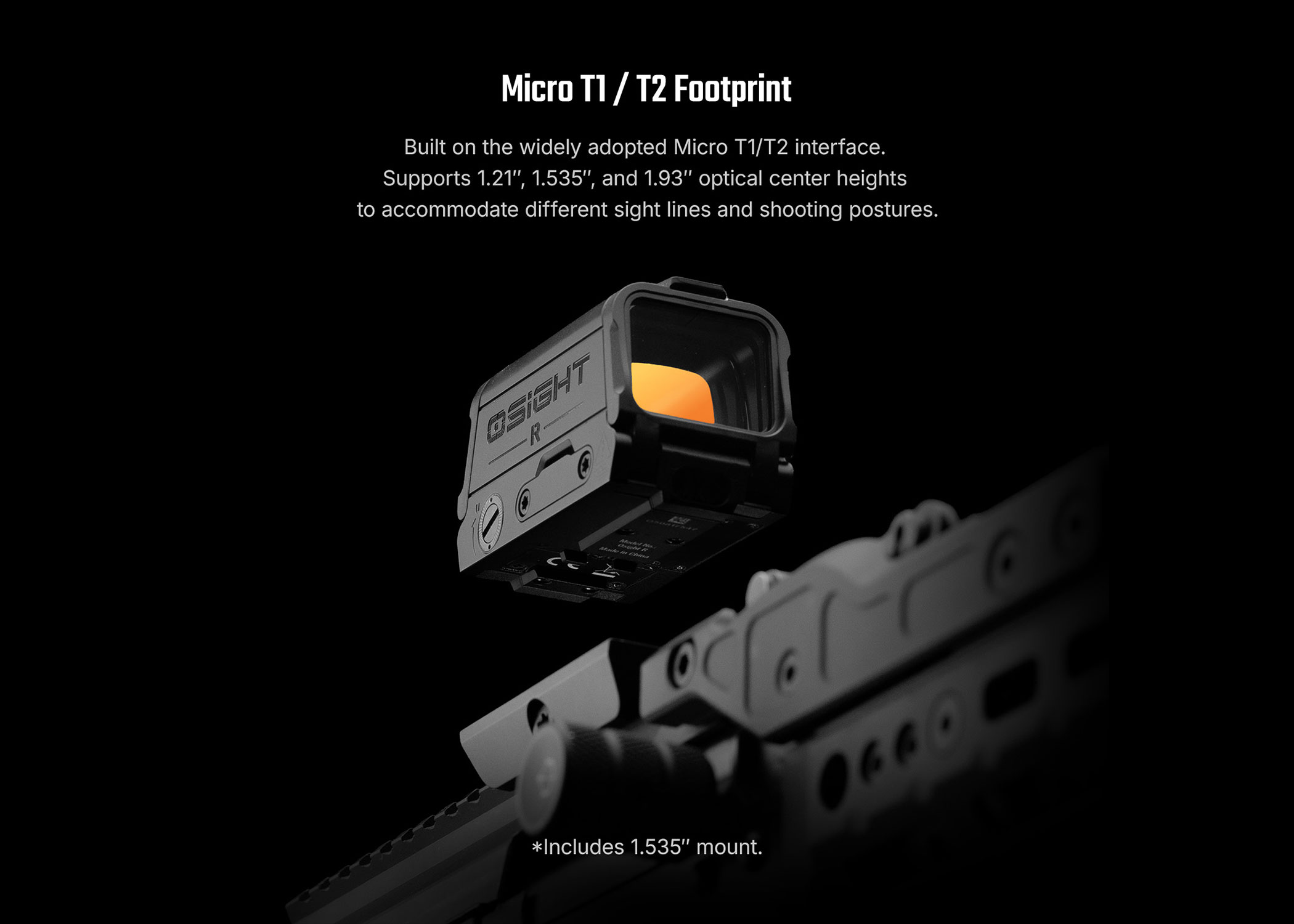

Micro T1/T2 Footprint: Built on the widely adopted Micro T1/T2 footprint, Osight offers 1.21″, 1.535″, and 1.93″ optical center height mounting options, allowing the optic to adapt to a wide range of setups and shooting preferences.

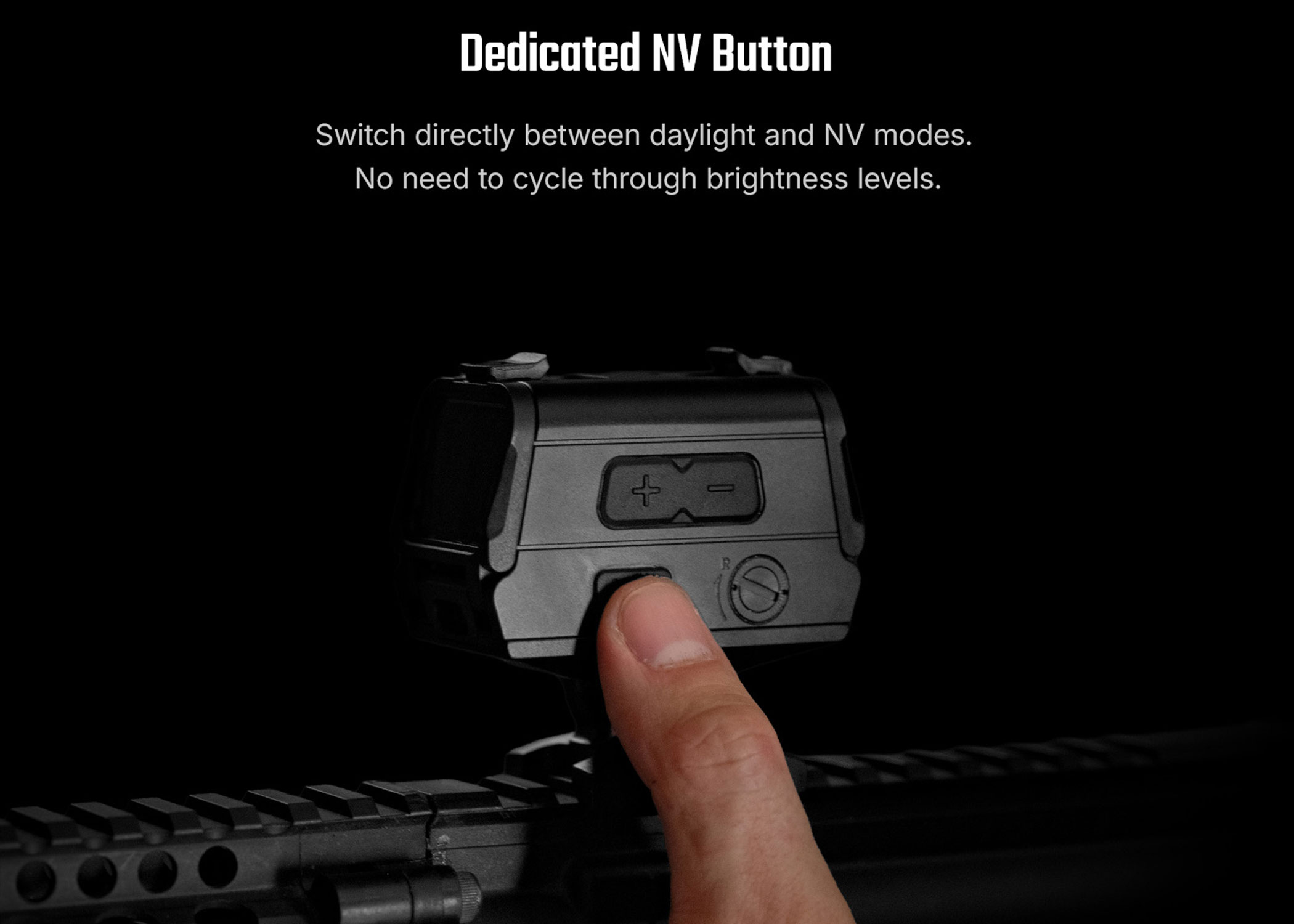

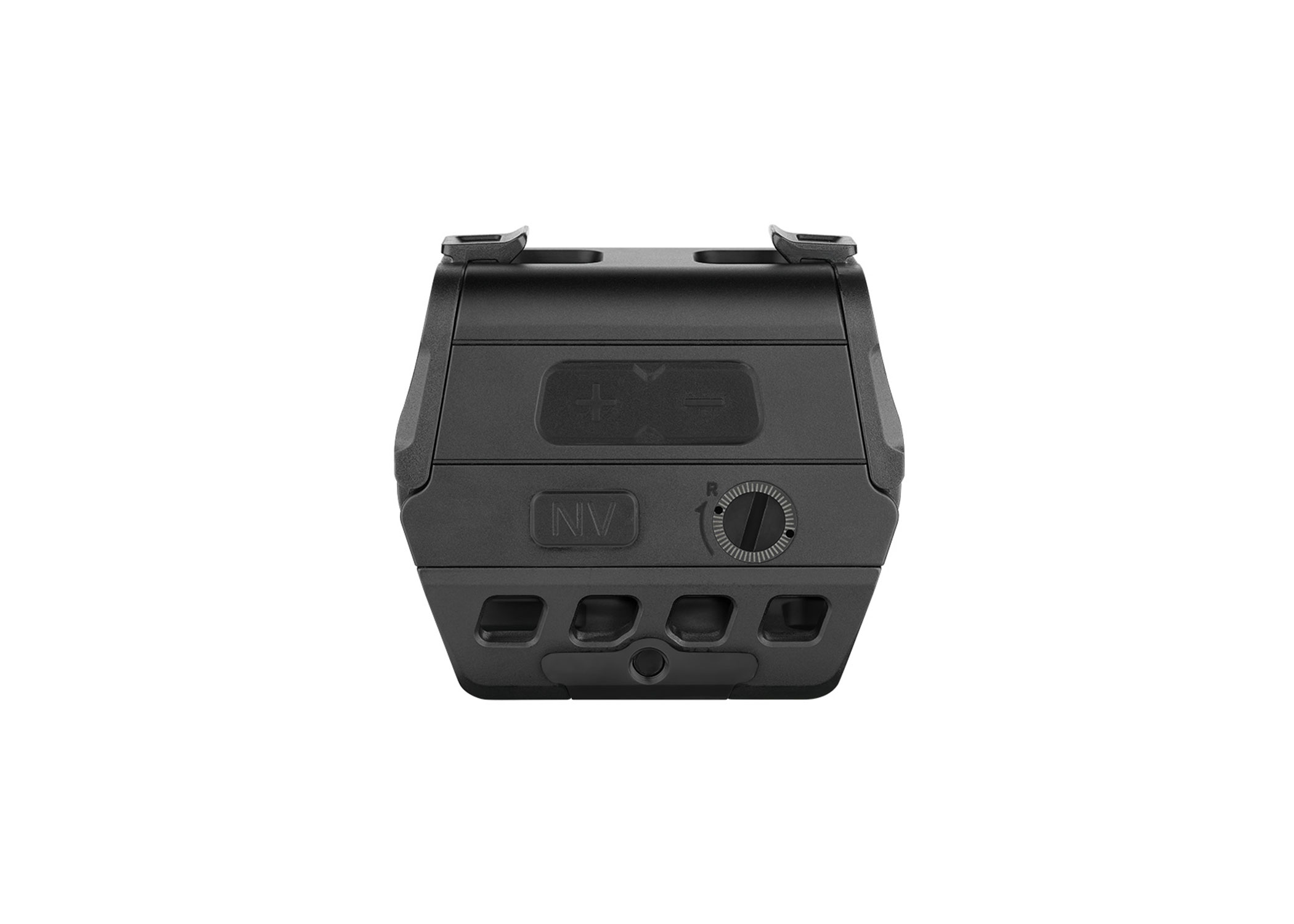

Quick-Access NV Button: An NV button enables convenient switching between daylight and night vision modes. With 9 daylight and 3 night vision settings, each mode retains its last-used level for quick adjustment and consistent visibility.
View all our Red Dots HERE.
| MATERIALS | |
|---|---|
| Optic Material | 7075-T6 Aluminum |
| General Data | |
|---|---|
| Power Source | CR2032 battery |
| Adjustment | 0.5 MOA per Click |
| Reticle Color | Red |
| Reticle Type | 2 MOA Dot & 65 MOA Circle |
| Memory Function | Yes |
| Unlimited Eye Relief | Yes |
| Parallax Free | Yes |
| Multi-Coatings | Yes |
| Motion Sensor Function | Yes |
| Max. Runtime | 83,000 H (Mode 5) |
| Brightness Settings | 9 DL & 3 NV |
| Light Wavelength | 650 nm |
| Magnification | 1x |
| W&E Travel Range | ± 50 MOA |
| Torque Specifications | M3 12in-lbs Per Screw / M5 43in-lbs Per Screw |
| Window Size | 1.10 × 0.87 in / 28 × 22 mm |
| Technical Characteristics | |
|---|---|
| Waterproof | IPX8 |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Use/Applications | Tactical, Competition, Self-Defense, Training, Hunting |
| Working Temperature | -22°F~140°F /-30°C~60°C |
| Weight (g / oz) | 6.70 oz / 190 g (standard mount & battery included) |
| Dimensions (Length x Width x Height) | 2.72 × 1.42 × 2.52 in （69 × 36 × 64 mm） |
| Packaging | Carton Box |

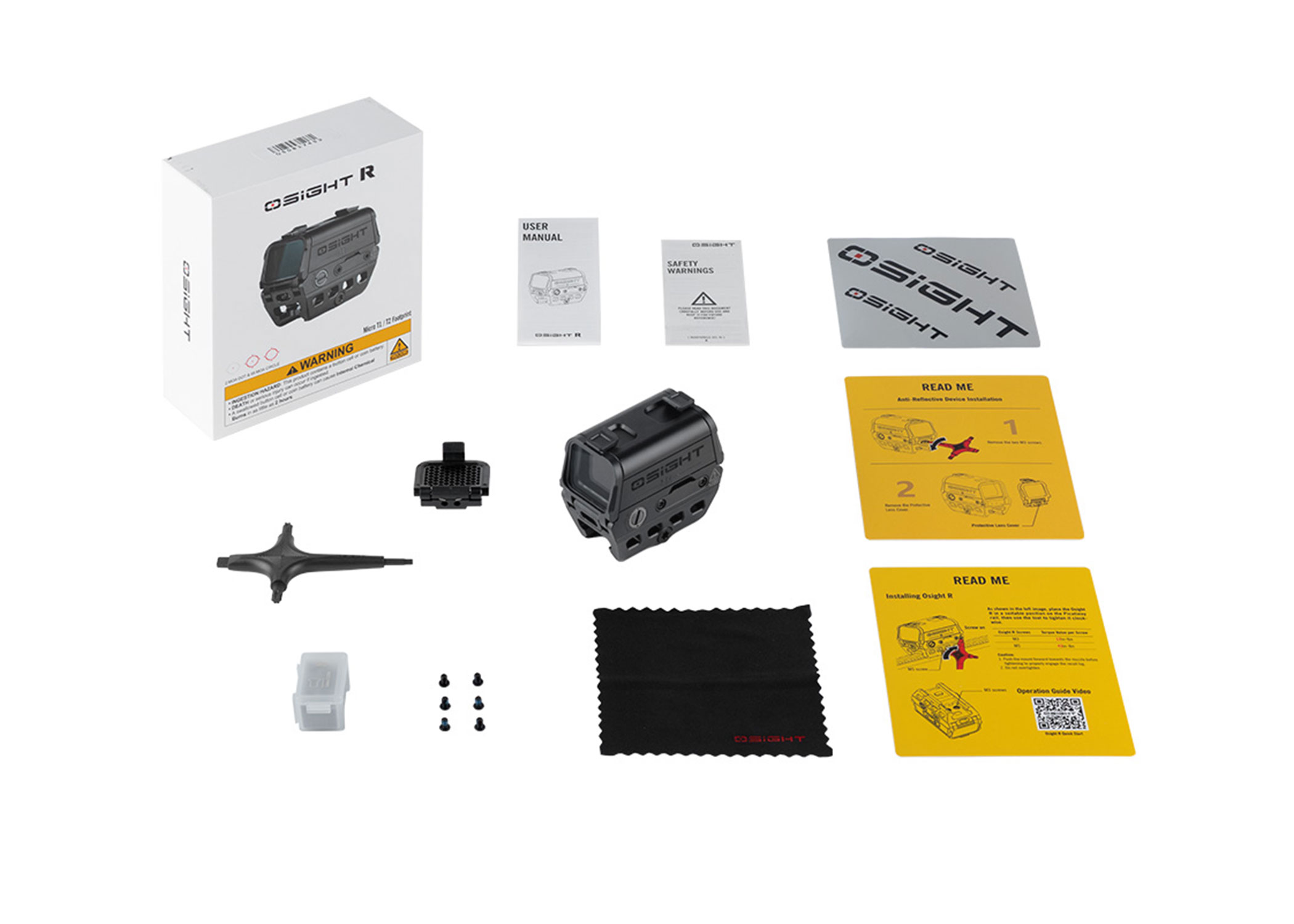

| Package Contents | |
|---|---|
| ● | Osight R (CR2032 battery included) × 1 |
| ● | Lower 1/3 Co-Witness Mount (ORS-153) × 1 |
| ● | Adjustment Tool × 1 |
| ● | READ ME Card × 1 |
| ● | M3*4 mm Screws × 6 |
| ● | Protective Lens Covers × 2 |
| ● | ARD (Anti-Reflective Device) × 1 |
| ● | Screw Box × 1 |
| ● | Osight Sticker × 1 |
| ● | Cleaning Cloth × 1 |
| ● | Safety Warnings × 1 |
| ● | User Manual × 1 |
| ● | Osight R (CR2032 battery included)× 1 ; PL X GL Matte Black × 1 |
